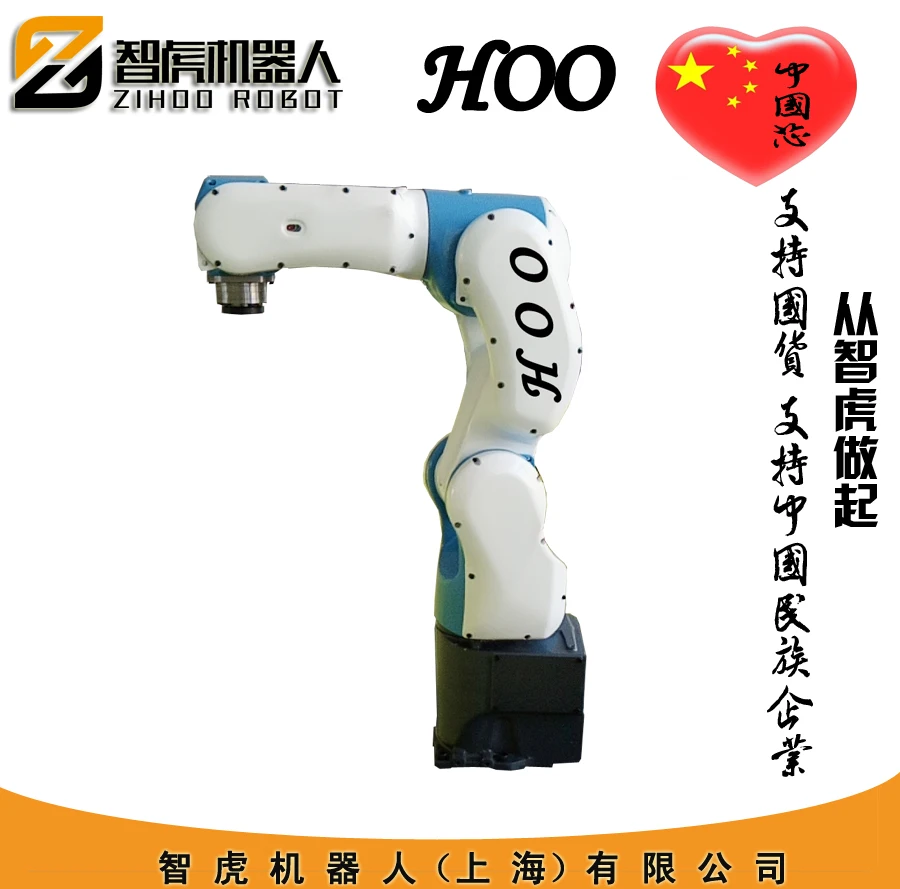

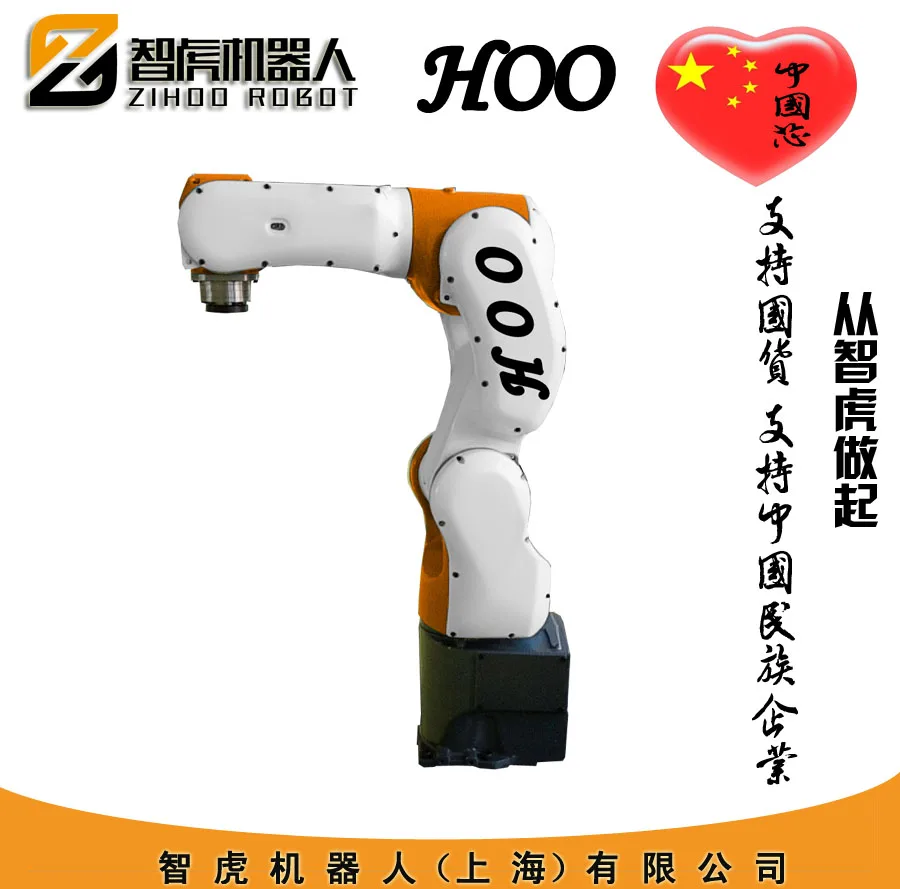

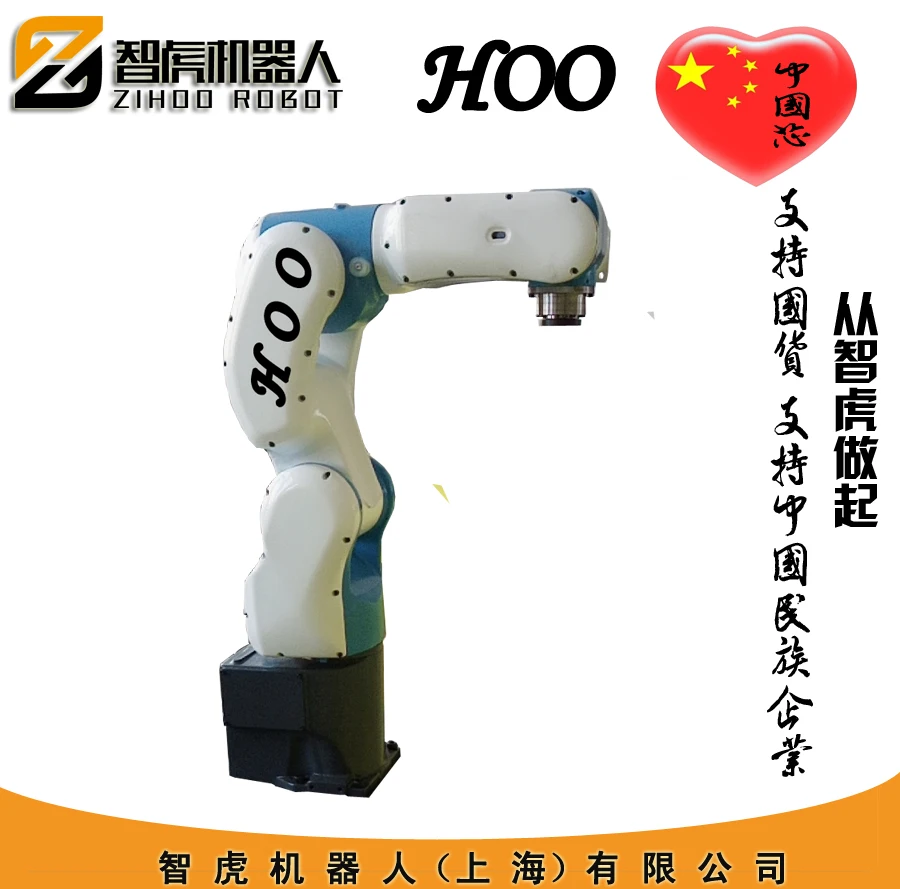

shengqi robot arm small industrial robot small six axis robot

FOB Reference Price:Get Latest Price
US $6,500-23,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZH607L
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Zihoo
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Whit
Axis:
6
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
We usually choose metal case to pack, size of case is in accordance with dimension of the equipment.
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(day) 30 To be negotiated

shengqi robot arm small industrial robot







Product Description







Product Overview.jpg



1.High speed,high precision, low vibration, Space Saving.Reducing tasks time through agile movements, even 3 D can also smooth precise trajectory control accuracy.



2. Robots and integration of image processing, it can simple device structure for many kinds of production.



3. Conveyor belt does not pause with cameras and sensors to identify parts on the conveyor belt, the robot can send for materials, JiaGongTai transfers.

Applications of the small robot arm:



1.Electrical and electronic:



Watches, printer parts, HDD, PC, PDA, game consoles, printed circuit board, measuring instruments, inspection equipment, gas detection, solar panels, IC tag inspection and packaging, diodes and other electronic parts assembly and inspection, the assembly of mobile phone parts inspection and packaging.



2.Food, cosmetics, articles for daily use:



The box assembly of cosmetics, convenience food packaging, candy packaging, assembly of electric toothbrush.



3.car:



Automobile parts assembly and inspection, the control box, mirror, clutch, lights, torches, fuel injector, vehicle driving guide.



4.medical:



Syringe packing, eye drops or other small goods container transfer, assembly of hearing AIDS, pacemaker battery assembly.



Technical Parameters.jpg



Type: SQ-07

Load: Max 7Kg

Axes: 6

Repeating Accuracy:≤0.05mm

Working Range:900mm

Power: 1.1Kw





Application

Assembly, Handling, Sorting

Axes

6

Payload

7Kg

Installation

Ground, Hang

Working Range

900mm

Positioning Repeatability

0.05mmm

Security Level

One Level

Weight

35Kg

Power

1.1Kw



Motion Range

Max Speed

1

-170°/+170°

150°/S

2

0/+130°

120°/S

3

-90°/+40°

180°/S

4

-100°/+100°

180°/S

5

-40°/+120°

180°/S

6

-360°/+360°

180°/S



Photo and Details.jpg










Packaging & Shipping



packing and delivery.jpg



_20180410161524





Company Information



factory and team.jpg

 why us-2why us-1why us-3





Warmly welcome to ur factory!
